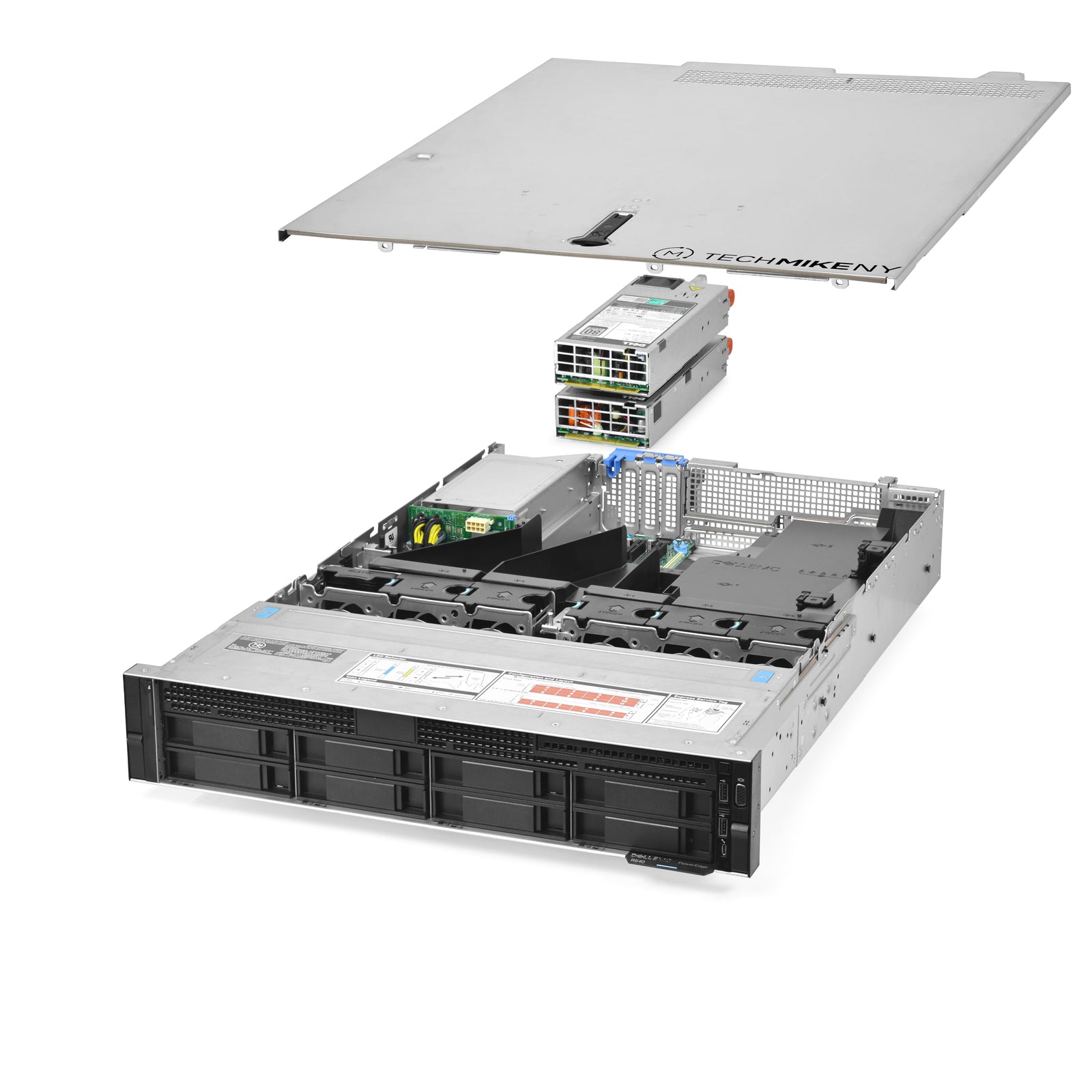

2U 8-Bay PowerEdge R540 3.5'' SAS \/ SATA quarter turn view with lid raised to show interior components, with 2 PSUs TM-540-SAP-145

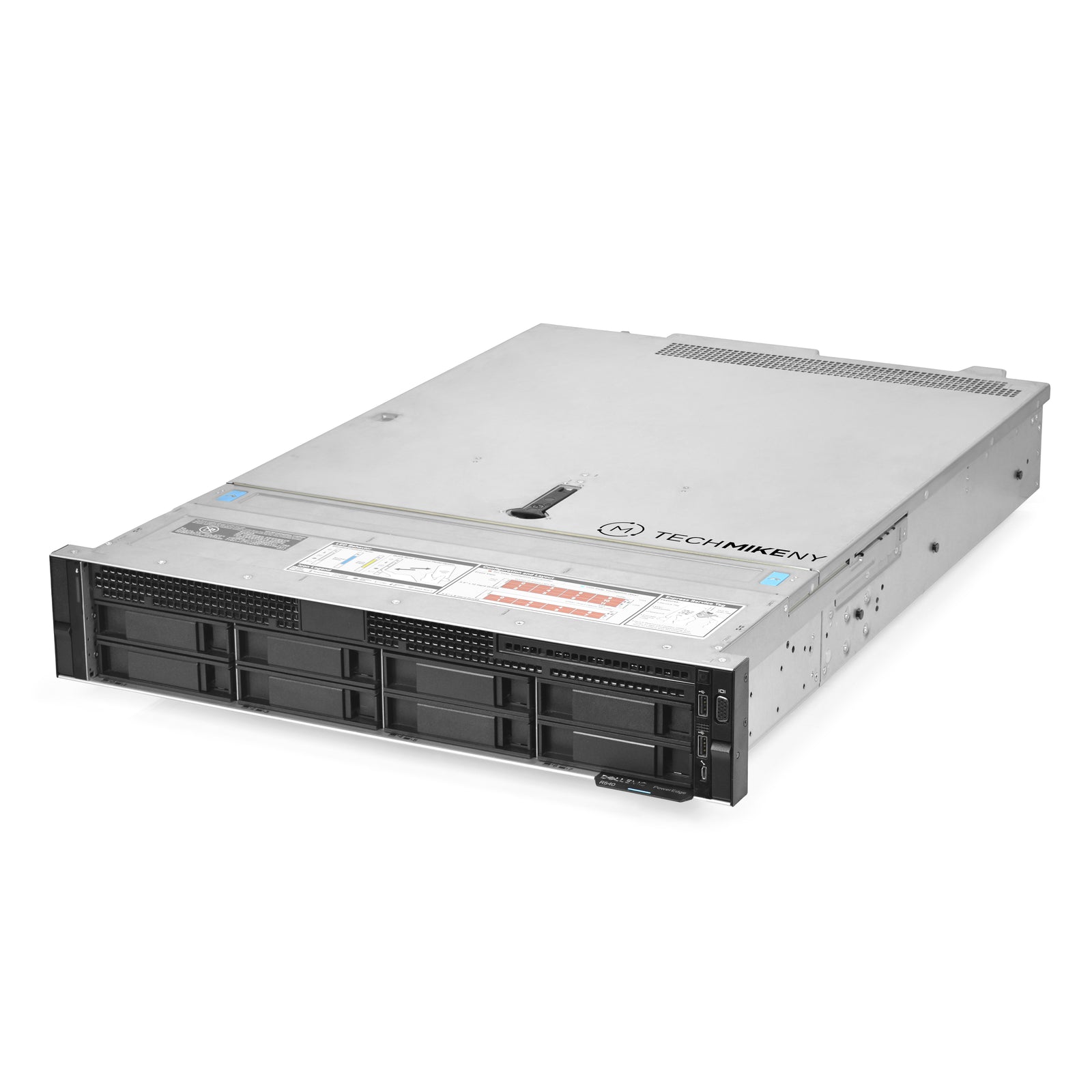

2U 8-Bay PowerEdge R540 3.5'' SAS \/ SATA quarter turn view TM-540-SAP-145

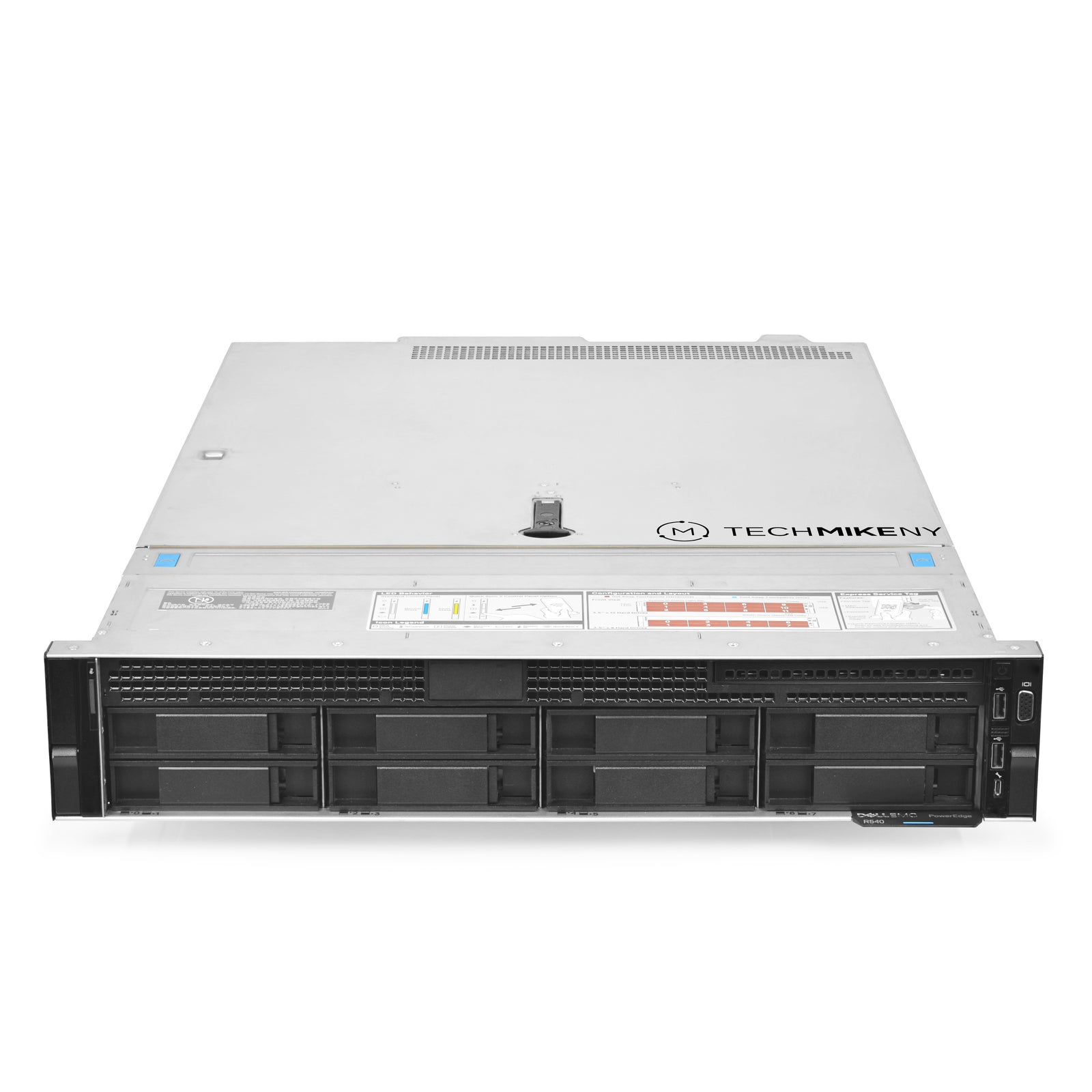

2U 8-Bay PowerEdge R540 3.5'' SAS \/ SATA front view TM-540-SAP-145

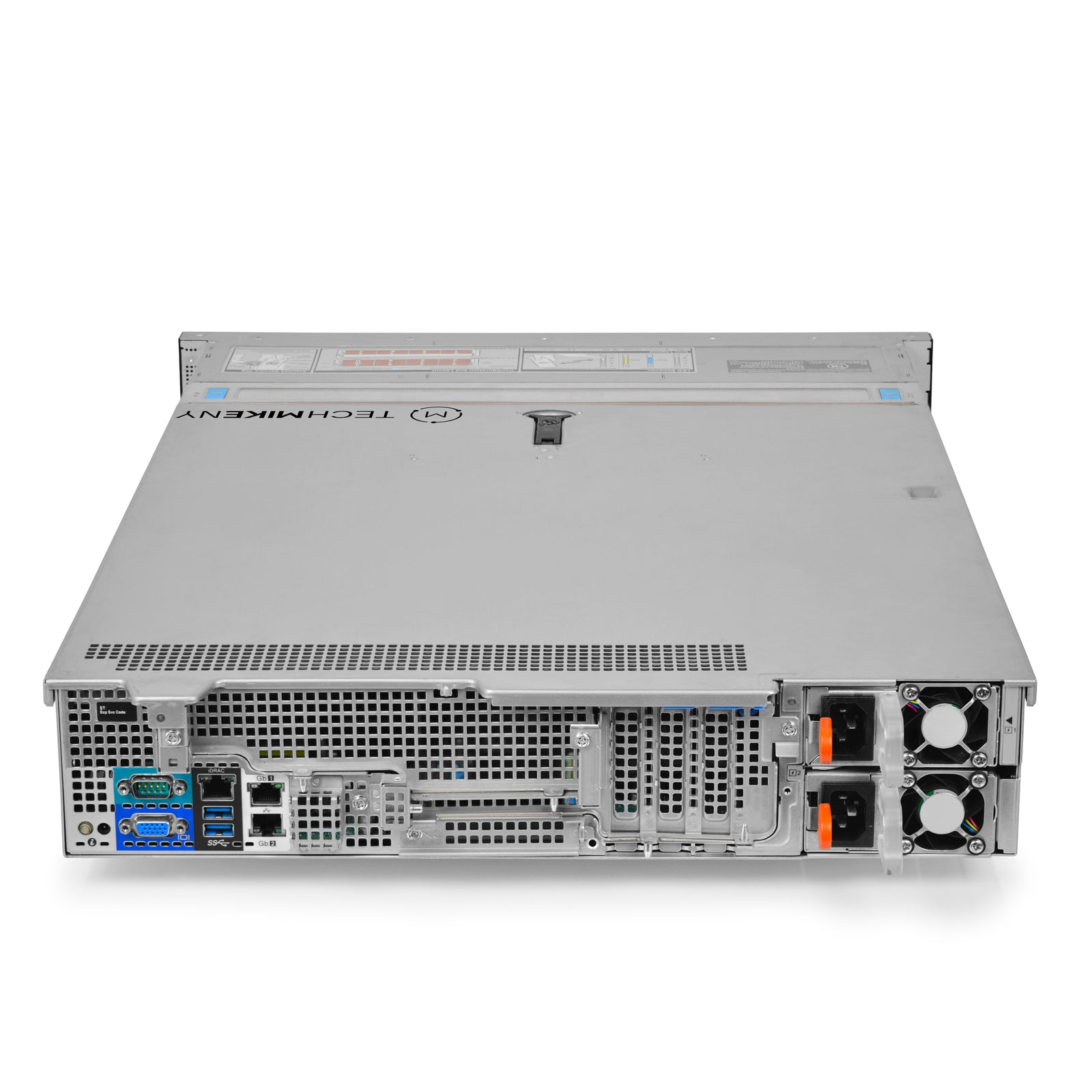

2U 8-Bay PowerEdge R540 3.5'' SAS \/ SATA back view TM-540-SAP-145
2U 8-Bay PowerEdge R540 3.5'' SAS \/ SATA TM-540-SAP-145

Dell PowerEdge R540 Server 2xGold 6226 2.70Ghz 24-Core 64GB RAM Energy-Efficient

$1,355.95
$1,355.95
–
+
Expedited Processing image

Specifications:

Model: Dell PowerEdge R540 Rack-Mountable Rack-Mountable Server with 8x 3.5'' SAS / SATA Bays
Processors: 2x 2.70Ghz Intel Xeon Gold 6226 12-Core 125W Cascade Lake Processors - Total of 24x Cores
Memory: 2x 32GB PC4-23466 ECC Registered (2933Mhz) - 64GB Total Memory
Hard Drives: No Drives or Caddies / Sleds - No Storage
Power Supplies: 2x Dell 750W Platinum AC 100V-240V PSUs with 2x Regular Power Cords
RAID Controller: H730P PCIe 2GB Cache RAID Controller
Remote Access Controller: iDRAC9 Express Embedded Remote Management
Front Bezel: Bezel Not Included
Rail Kit: Rails Not Included
Software: No Software
Network Interface: Networking Ports: Dual-Port 1GB RJ-45
Graphics Card: Integrated Video Card
R2 Certifications: F4-Hardware Functional, Cosmetic: A, Signs of light use
Condition: Refurbished

SKU: TM-540-SAP-145
